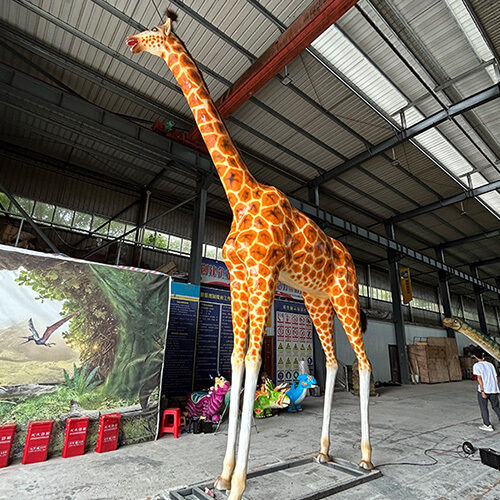

Safari Zoo Life Size Mechanical Artificial Animal Animatronic Giraff Model

1. Technical Specifications & Structural Engineering

Core Architecture & Framework:

• Primary Structure: Industrial-grade tubular steel space frame engineered with finite element

    analysis (FEA) for optimal weight distribution and wind load resistance (up to 120 km/h gusts).

    The internal skeleton mimics the actual bone structure for authentic movement articulation.

• Modular Design: Engineered in 3-5 major transportable modules (leg base, torso, neck/head)

    for feasible shipping and on-site assembly. Modules connect via flanged steel joints with seismic

    grade bolts.

• Foundations: Requires reinforced concrete piers (1.5-2m deep) with custom embedded steel

    mounting plates to anchor the leg modules, creating the illusion the model is standing on natural

    terrain.

2. Animatronic Motion System & Behavioral Programming

• Kinematic System: A multi-axis system controlled by a centralized industrial PLC (Programmable

    Logic Controller) and high-torque, IP68-rated hydraulic actuators (for smooth, powerful neck

    movements) combined with precision servo motors (for finer head, ear, tail, and eyelid movements).

• Key Programmed Behaviors:

  • Grazing Sequence: The signature movement. The neck lowers in a slow, elegant arc, the head

        tilts, jaws simulate plucking and chewing leaves, followed by the neck raising and an audible swallow.

• • Vigilance Sequence: Ears swivel independently, head raises to full height and scans the horizon

      with slow, panoramic turns.

• • Interaction Sequence: Gentle head turn towards approaching safari vehicles, accompanied by

         subtle blinking and ear flicks.

• • Idle & Maintenance Behaviors: Subtle breathing motion in the torso, tail swishing, tongue cleaning

          nostrils, and occasional full-body stretch.

• Sound Integration: A high-fidelity, weatherproof speaker system hidden in the base or surrounding foliage

    delivers ambient sounds (gentle grunts, snorts, chewing sounds) and can be synced with narration for

    educational presentations.

3. Installation & Thematic Integration

• Site Specifications: Requires a prepared site of approx. 8m x 8m, with underground utilities (power, data,

     drainage) and foundations completed prior to arrival.

• Assembly Process: Conducted by a specialized crew using a mobile crane. Typical on-site assembly and

    calibration time: 10-14 days.

• Landscaping Integration: Designed to be the centerpiece of a savanna-themed biome, surrounded by

     artificial acacia trees (with LED leaf canopies), rockwork, and companion animatronic species (e.g., zebras,

     antelopes).

• Educational Integration: Can be paired with interactive kiosks or QR-code plaques explaining giraffe

    biology, conservation status, and the technology behind the animatronic.

4. Maintenance & Lifecycle Management

• Preventive Maintenance Schedule:

  • Daily: Visual inspection, audio check, basic movement cycle test.

  • Monthly: Hydraulic fluid level and pressure checks, servo calibration, joint lubrication, cosmetic cleaning

        of the skin.

• • Annually: Full system diagnostics, structural bolt torque check, actuator performance test, repainting of

       wear points, full software backup and update.

• Design for Service: Easy-access service panels are hidden under detachable skin patches on the belly and

    upper legs, allowing technicians to reach major components without scaffolding.

• Expected Service Life: 5-10 years with a comprehensive preventive maintenance program.

5. Safety & Compliance

• Structural Safety: Certified by a third-party structural engineer for public installation. Includes seismic and

    wind load certification.

• Electrical Safety: All systems comply with IEC/EN 60204 safety of machinery standards. Includes emergency

    stop circuits, ground fault protection, and physical barriers around moving parts accessible during maintenance.

• Public Safety: Installed with a mandatory perimeter barrier (disguised as log fencing or decorative rocks) to

    maintain a safe guest distance.

6. Customization & Project Parameters

• Model Variants: Masai Giraffe (distinctive, jagged patterning) or Reticulated Giraffe (sharp, network-like

    patterning). Can be customized as a male (larger, robust ossicones) or female model.

• Dimensions: True to life. Total Height: 4.5m - 5.5m (15ft - 18ft) to head. Length: 4m - 5m (13ft - 16ft).

• Project Lead Time: 2-4 weeks from deposit to grand opening, encompassing design, engineering,

     fabrication, testing, shipping, and installation.

• Comprehensive Package: Includes design, manufacturing, worldwide shipping, on-site assembly &

    calibration, operator training, and a 2-year parts & labor warranty.

Value Proposition & ROI

This Life-Size Mechanical Animatronic Giraffe Model is a strategic capital asset designed to:

1. Create an Iconic Landmark: Becomes the visual symbol and must-see photo opportunity of the safari

    zone, directly increasing attraction popularity and guest dwell time.

2. Enhance Educational Mission: Provides a captivating, all-weather platform for delivering conservation

    education about vulnerable species, aligning with modern zoo mandates.

3. Drive Operational Efficiency: Offers a guaranteed, dramatic animal "sighting" that complements live

    animal exhibits, improving guest satisfaction regardless of live animal activity.

4. Ensure Long-Term Value: Built with industrial longevity and serviceability in mind, providing a strong

    return on investment over decades of operation.

It represents the pinnacle of thematic sculpture, robotic engineering, and wildlife storytelling, engineered

not just as a display, but as a living, breathing character within the park's narrative landscape.
